Ultrasound Crystal
Created with Pixso.

GE L3-12 Linear Array Transducer Ultrasound Scanhead for Vascular Imaging and Medical Diagnosis

GE L3-12 Linear Array Transducer Ultrasound Scanhead for Vascular Imaging and Medical Diagnosis

Brand Name: MYPRO
MOQ: 1 Piece
Price: Negotiable
Payment Terms: T/T,MoneyGram,Western Union
Supply Ability: 2000 pieces per year
Detail Information
Place of Origin:
China
Application:
Vascular, Smallparts, MSK Etc.
Material:
Plastic,Metal
Function:
Medical Diagnosis
Service:
Online Technical Support; Return & Replacement; Send Back For Repair
Packaging Details:
Carton, 420mm*270mm*100mm for 1 probe
Supply Ability:
2000 pieces per year
Product Description

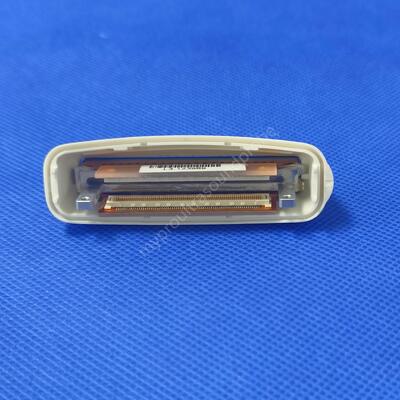

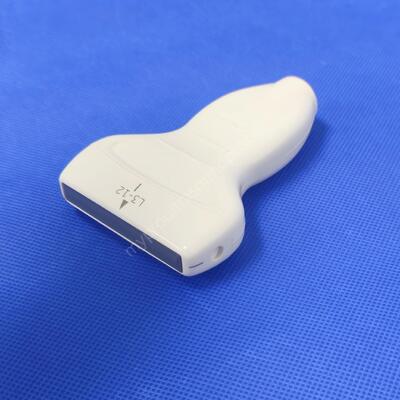

GE L3-12 Linear Array Transducer Ultrasound Crystal Ultrasound Scanhead
Product Specifications
Product Property Details
Product Type Ultrasound Probe Array / Crystal / Scanhead / Acoustic Module / Transducer
Brand GE
Model Number L3-12
Probe Type Linear
GE L3-12 Linear Array Transducer Ultrasound Scanhead for Vascular Imaging and Medical Diagnosis 0
Ultrasound Transducer Technical Overview
1. Material Composition
The active element is typically made of piezoelectric crystals or newer materials for higher sensitivity and bandwidth. The lens or matching layer is often composed of acoustic polymers to optimize impedance matching between the transducer and tissue.
2. Frequency Range
Operates at specific frequencies, with higher frequencies offering better resolution but shallower penetration. Multi-frequency probes support adjustable frequencies for different imaging depths.
3. Array Configuration
  • Linear array: Flat footprint, high near-field resolution (e.g., vascular imaging)
  • Curved array (convex): Wider field of view for deep abdominal scans
  • Phased array: Small footprint with steering capability (e.g., cardiac imaging)
4. Aperture Size & Footprint
The physical size and shape vary by application (e.g., small footprints for interventional or pediatric use).
5. Damping Layer
A backing layer absorbs backward-directed vibrations to shorten pulse duration, improving axial resolution.
6. Matching Layer
Reduces acoustic impedance mismatch between the transducer and tissue, enhancing energy transmission.
7. Thermal & Electrical Safety
Designed to minimize heat generation (meeting FDA/IEC limits for surface temperature rise). Electrically insulated to protect patients and operators.
8. Beamforming Capability
Modern probes support dynamic focusing, electronic steering, and multi-line acquisition for real-time imaging.
9. Durability & Sterilization
Encased in robust materials (e.g., plastic, metal) resistant to wear and chemical disinfectants. Some probes are waterproof for intraoperative or endoscopic use.
10. Specialized Variants
3D/4D probes: Incorporate mechanical or matrix arrays for volumetric imaging. Intracavitary probes: Miniaturized designs for transvaginal/transrectal applications.
Available GE Transducer Models
Type Original Model
convexC36
convexCBF3.5
convex3Cb
convexC358
convex3C
convex3.5C
convex4C
convex4C-RS
convex3C-RS
convex3.8C-RC
convex4C-RC
convexC2-5-RC
convexC2-5-RS
convexAB2-7
convexAB2-7-RS
convexAB2-7-D
convexC1-5-D
convexC1-5-RS
convexC1-6-D
LinearL76
LinearL39
LinearLH
Linear7L-RC
Linear7.5L-RC
Linear8L
Linear8L-RS
Linear9L
Linear9L-RS
Linear9L-D
Linear11L
Linear12L
LinearL6-12-RC
LinearL6-12-RS
transvaginalE72
transvaginalMTZ
transvaginalE8C
transvaginalE8Cs
transvaginalE7C-RC
transvaginalE8C-RS
transvaginalE8Cs-RC
transvaginalE8Cs-RS
transvaginalIC5-9
transvaginalIC5-9H
transvaginalIC5-9-D
phased array3S
phased array3Sp
phased array3Sp-D
phased array3S-RC
phased array3S-RS
phased array3Sc-RS
phased array6S-RS
phased array6S-D
Matrix CardiacM3S
Matrix CardiacM4S
Matrix CardiacM4S-RS
Matrix CardiacM5S-D
Matrix CardiacM5Sc-D
Matrix LinearML6-15
Matrix LinearML6-15-D
4D TVRIC5-9
4D TVRIC5-9H
4D TVRIC5-9W
4D TVRIC5-9W-RS
4D TVRIC5-9-D
4D TVRIC6-12-D
