GE ML6-15 Matrix Linear Array Transducer Ultrasound Scanhead for Vascular Imaging and Medical Diagnosis

Brand Name:	MYPRO
MOQ:	1 Piece
Price:	Negotiable
Payment Terms:	T/T,Western Union
Supply Ability:	2000 pieces per year

Detail Information

Product Description

Detail Information

Place of Origin:

China

Application:

Vascular, Smallparts, MSK Etc.

Material:

Plastic,Metal

Function:

Medical Diagnosis

Service:

Online Technical Support; Return & Replacement; Send Back For Repair

Packaging Details:

Carton, 420mm*270mm*100mm for 1 probe

Supply Ability:

2000 pieces per year

Product Description

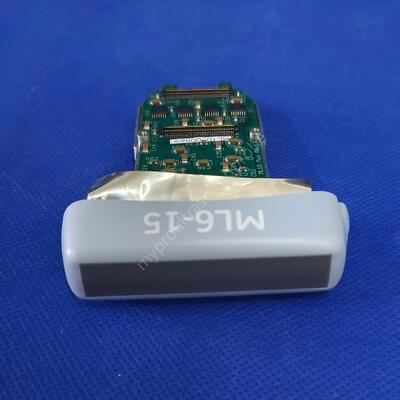

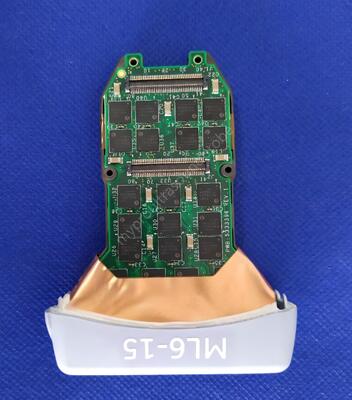

GE ML6-15 Matrix Linear Array Transducer Ultrasound Scanhead

GE ML6-15 Matrix Linear Array Transducer Ultrasound Scanhead for Vascular Imaging and Medical Diagnosis

Product Specifications

Product Property	Details
Product Type	Ultrasound Probe Array / Crystal / Scanhead / Acoustic Module / Transducer
Brand	GE
Model Number	ML6-15
Probe Type	Matrix Linear

Ultrasound Transducer Technical Overview

1. Material Composition

The active element is typically made of piezoelectric crystals or newer materials for higher sensitivity and bandwidth. The lens or matching layer is often composed of acoustic polymers to optimize impedance matching between the transducer and tissue.

2. Frequency Range

Operates at specific frequencies, with higher frequencies offering better resolution but shallower penetration. Multi-frequency probes support adjustable frequencies for different imaging depths.

3. Array Configuration

Linear array: Flat footprint, high near-field resolution (e.g., vascular imaging)
Curved array (convex): Wider field of view for deep abdominal scans
Phased array: Small footprint with steering capability (e.g., cardiac imaging)

4. Aperture Size & Footprint

The physical size and shape vary by application (e.g., small footprints for interventional or pediatric use).

5. Damping Layer

A backing layer absorbs backward-directed vibrations to shorten pulse duration, improving axial resolution.

6. Matching Layer

Reduces acoustic impedance mismatch between the transducer and tissue, enhancing energy transmission.

7. Thermal & Electrical Safety

Designed to minimize heat generation (meeting FDA/IEC limits for surface temperature rise). Electrically insulated to protect patients and operators.

8. Beamforming Capability

Modern probes support dynamic focusing, electronic steering, and multi-line acquisition for real-time imaging.

9. Durability & Sterilization

Encased in robust materials (e.g., plastic, metal) resistant to wear and chemical disinfectants. Some probes are waterproof for intraoperative or endoscopic use.

10. Specialized Variants

3D/4D probes: Incorporate mechanical or matrix arrays for volumetric imaging. Intracavitary probes: Miniaturized designs for transvaginal/transrectal applications.

Available GE Transducer Models

Type	Original Model
convex	C36, CBF3.5, 3Cb, C358, 3C, 3.5C, 4C, 4C-RS, 3C-RS, 3.8C-RC, 4C-RC, C2-5-RC, C2-5-RS, AB2-7, AB2-7-RS, AB2-7-D, C1-5-D, C1-5-RS, C1-6-D
Linear	L76, L39, LH, 7L-RC, 7.5L-RC, 8L, 8L-RS, 9L, 9L-RS, 9L-D, 11L, 12L, L6-12-RC, L6-12-RS
transvaginal	E72, MTZ, E8C, E8Cs, E7C-RC, E8C-RS, E8Cs-RC, E8Cs-RS, IC5-9, IC5-9H, IC5-9-D
phased array	3S, 3Sp, 3Sp-D, 3S-RC, 3S-RS, 3Sc-RS, 6S-RS, 6S-D
Matrix Cardiac	M3S, M4S, M4S-RS, M5S-D, M5Sc-D
Matrix Linear	ML6-15, ML6-15-D
4D TV	RIC5-9, RIC5-9H, RIC5-9W, RIC5-9W-RS, RIC5-9-D, RIC6-12-D
