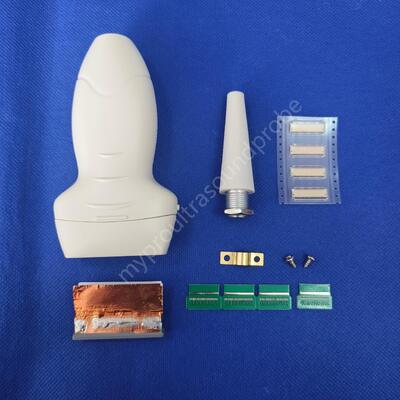

Medison L5-13IS Linear Array Ultrasound Transducer Scanhead for Medical Diagnosis and Probe Repair

Medison L5-13IS Linear Array Ultrasound Transducer Scanhead for Medical Diagnosis and Probe Repair

Brand Name: MYPRO
Model Number: L5-13IS
MOQ: 1 Piece
Price: Negotiable
Payment Terms: T/T
Supply Ability: 2000 pieces per year
Detail Information
Place of Origin:
China
Application:
Vascular, Smallparts, MSK Etc.
Material:
Plastic,Metal
Function:
Medical Diagnosis
Service:
Online Technical Support; Return & Replacement; Send Back For Repair
Packaging Details:
Carton, 420mm*270mm*100mm for 1 probe
Supply Ability:
2000 pieces per year
Highlight:

Linear Array Ultrasound Transducer

,

Medical Diagnosis Ultrasound Scanhead

,

L5-13IS Model Ultrasound Crystal

Product Description
Medison L5-13IS Linear Array Ultrasound Transducer Scanhead for Ultrasound Probe Repair
Medison L5-13IS Linear Array Ultrasound Transducer Scanhead for Ultrasound Probe Repair
Product Property Details
Product Type Ultrasound Probe Array / Crystal / Scanhead / Acoustic Module / Transducer
Brand Medison
Model Number L5-13IS
Probe Type Linear
Medison L5-13IS Linear Array Ultrasound Transducer Scanhead
Ultrasound Transducer Technical Overview
Material Composition
The active element is typically made of piezoelectric crystals or newer materials for higher sensitivity and bandwidth. The lens or matching layer is often composed of acoustic polymers to optimize impedance matching between the transducer and tissue.
Frequency Range
Operates at specific frequencies, with higher frequencies offering better resolution but shallower penetration. Multi-frequency probes support adjustable frequencies for different imaging depths.
Array Configuration
  • Linear array: Flat footprint, high near-field resolution (e.g., vascular imaging)
  • Curved array (convex): Wider field of view for deep abdominal scans
  • Phased array: Small footprint with steering capability (e.g., cardiac imaging)
Aperture Size & Footprint
The physical size and shape vary by application (e.g., small footprints for interventional or pediatric use).
Damping Layer
A backing layer absorbs backward-directed vibrations to shorten pulse duration, improving axial resolution.
Matching Layer
Reduces acoustic impedance mismatch between the transducer and tissue, enhancing energy transmission.
Thermal & Electrical Safety
Designed to minimize heat generation (meeting FDA/IEC limits for surface temperature rise). Electrically insulated to protect patients and operators.
Beamforming Capability
Modern probes support dynamic focusing, electronic steering, and multi-line acquisition for real-time imaging.
Durability & Sterilization
Encased in robust materials (e.g., plastic, metal) resistant to wear and chemical disinfectants. Some probes are waterproof for intraoperative or endoscopic use.
Specialized Variants
3D/4D probes: Incorporate mechanical or matrix arrays for volumetric imaging. Intracavitary probes: Miniaturized designs for transvaginal/transrectal applications.
Available Medison Transducer Models
Type Original Model
convex C2-5/60BD*no connector
convex C2-5/40
convex C3-7ED-N
convex HC3-6ED-N
convex C2-5ET-N
convex C2-5EL-N
convex C5-2EL
convex 99-C2-5IR
convex 99-C3-7IM
convex AXC3-7IM
convex C3-7EP-N
convex C2-8-N
convex AXC2-5EL
convex AXC2-8
convex AKC2-8
convex AXC3-7EP
convex AKC2-6IC
convex SC1-6
convex TZCN2-8
convex TZC2-8
convex TZC3-7
linear L5-9EC-N
linear HL5-9ED-N
linear HL5-12ED-N
linear AXLN5-12
linear AXHL5-12EC
linear AXHL5-12ED
linear AXL5-12/50EP
linear TZLN5-12
linear TZLN5-12/40
linear 99-L5-12IM
linear 99-L5-12IR
linear AXL5-12IM
Linear AXL5-13IS
Linear AKL5-13IS
transvaginal EC4-9/10ED-N
transvaginal EV4-9/10ED-N
transvaginal ER4-9/10ED-N
transvaginal AXEC4-9IS
transvaginal AXER4-9/10ED
transvaginal AXEV4-9/10ED
transvaginal AKEV4-9/10ED
transvaginal TZEVN4-9
transvaginal TZEC4-9
transvaginal TZER4-9
Microconvex C2-4/20
Microconvex C2-4ES-N
Microconvex TZC2-4/20
Microconvex TZC4-9
phased array P2-4AH-N
phased array AXP2-4AH
phased array AXP2-4AC
phased array AXP2-4BA
phased array TZPN2-4
phased array TZP2-4AH
