| Brand Name: | MYPRO |
| Model Number: | CH LAD7L40L-C1 |
| MOQ: | 1 Piece |
| Price: | Negotiable |
| Payment Terms: | T/T |
| Supply Ability: | 2000 pieces per year |

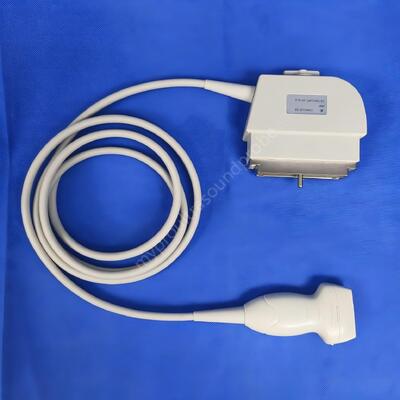

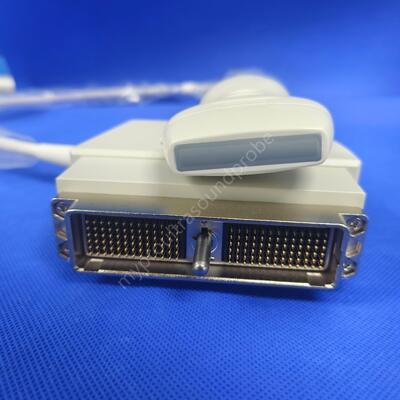

The D7L40L is a compatible linear ultrasound probe designed for Chison CBit 8 and Qbit 5 diagnostic systems. Engineered for vascular, small parts, and musculoskeletal (MSK) imaging, this transducer delivers reliable performance and high-resolution imaging for a wide range of clinical applications.
| Brand Name | MYPRO | Model Number | D7L40L |
|---|---|---|---|
| Part Number | / | Probe Type | Linear |
| Application | Vascular, Small Parts, MSK, etc. | Compatible Brand | Chison |
| Compatible Systems | CBit 8, Qbit 5 | Central Frequency (MHz) | 7.5 |
| Radius of Curvature / Length (mm) | 38 | Elements Number | 128 |
| Material | PZT, Plastic, Metal, IC | Condition | Compatible probe |
| Country of Origin | China | Warranty | 1 Year |
| After-sale Service | Online technical support; Return & Replacement; Send back for repair | ||
| Type | Model |
|---|---|
| Convex | C60 |
| Convex | C60613L |
| Linear | L40617L |
| Convex | D3C60L |
| Convex | C3-A |
| Microconvex | MC6-A |
| Transvaginal | V6-A |
| Linear | L7M-A |
| Rectal | L7V-A |
Note: This is a compatible replacement probe, not an OEM original part. Please verify system compatibility prior to purchase.
